Managing Services and Client

Managing the stack

Having a Terraform project for managing just the Service and another one for Clients might not be the best solution in all cases. In some cases, your CI/CD pipeline will be simpler if you group the service definition and required clients in a single Terraform module.

In this sample we will demo how grouping the objects with conjunction of workspace can be used to organize the workflow of the change management process.

Declaring the stack objects

The services and clients objects dependent but they are not required be declared in different projects or modules. That will be required only if you need to bootstrap the project from an existing Authlete configuration, see more detail in Bootstraping project from configuration.

If you have seen the service and client management notes, you might have already noticed how you can declare the services and the clients in a single module, but the source code is available under stack_management folder of Authlete Terraform Samples.

We start the example by declaring the required provider under provider.tf and initializing the workspace. You can follow the steps for that in the section Declaring the dependency on Creating a project from scratch.

The Authlete Service and Client can be found in the main.tf source code shown below. The authlete_service resource declares a service as and the authlete_client resource declares an OAuth client dependent on the as service via service_api_key and service_api_secret properties.

When Terraform evaluate the execution plan, it identifies the dependencies and provisions in the proper order. First it creates the service and after resolving the api key and secret, it creates the OAuth client on the service just created.

% cat main.tf
provider "authlete" {
}

resource "authlete_service" "as" {
   issuer = "https://as.mydomain.com"
   service_name = "MyDomainAS_${terraform.workspace}"
   description = "A terraform based service for managing the ${terraform.workspace} Authlete based OAuth server"
   supported_grant_types = ["AUTHORIZATION_CODE"]
   #supported_grant_types = ["AUTHORIZATION_CODE", "CLIENT_CREDENTIALS"]
   supported_response_types = ["CODE"]
}

resource "authlete_client" "portal" {
   service_api_key = authlete_service.as.id
   service_api_secret = authlete_service.as.api_secret
   developer = "mydomain"
   client_id_alias = "portal_client"
   client_id_alias_enabled = false
   client_type = "CONFIDENTIAL"
   redirect_uris = concat([ "https://${terraform.workspace}.mydomain.com/cb",],
      var.portal_client_additional_redirects )
   response_types = [ "CODE" ]
   grant_types = [ "AUTHORIZATION_CODE", "REFRESH_TOKEN"]
   client_name = "Customer Portal client - ${terraform.workspace}"
   requestable_scopes = ["openid", "profile"]
   access_token_duration = 30
   refresh_token_duration = 14400
}

You might have noticed the reference to terraform.workspace in the service_name and description of the service and redirect_uris and client_name of the client. That will allow easy identification of the services in the console and segregation of configuration by runtime.

Using workspace for managing environment

The workspace mechanism of Terraform fits the purpose of managing the different environments required for software development. In the section below, we declare a service that has the workspace name in its name and a client with that same info in the redirect uris.

Let’s check how this mechanism can be used for managing a development, a test, and a production configuration. We start with creating a development env and creating the resources for development using the commands below:

% terraform workspace new dev
Created and switched to workspace "dev"!

You're now on a new, empty workspace. Workspaces isolate their state,
so if you run "terraform plan" Terraform will not see any existing state
for this configuration.

% terraform apply --auto-approve

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create

Terraform will perform the following actions:

# authlete_client.portal will be created
+ resource "authlete_client" "portal" {
    + access_token_duration                            = 30
    + apikey                                           = (known after apply)
    + apisecret                                        = (sensitive value)
    + application_type                                 = (known after apply)
    + auth_time_required                               = (known after apply)
    + authorization_sign_alg                           = (known after apply)
    + bc_delivery_mode                                 = (known after apply)
    + bc_request_sign_alg                              = (known after apply)
    + bc_user_code_required                            = (known after apply)
    + client_id                                        = (known after apply)
    + client_id_alias                                  = "portal_client"
    + client_id_alias_enabled                          = false
    + client_name                                      = "Customer Portal client - dev"
    + client_secret                                    = (sensitive value)
    + client_type                                      = "CONFIDENTIAL"
    + created_at                                       = (known after apply)
    + derived_sector_identifier                        = (known after apply)
    + developer                                        = "mydomain"
    + dynamically_registered                           = (known after apply)
    + front_channel_request_object_encryption_required = (known after apply)
    + grant_types                                      = [
        + "AUTHORIZATION_CODE",
        + "REFRESH_TOKEN",
          ]
    + id                                               = (known after apply)
    + id_token_sign_alg                                = (known after apply)
    + modified_at                                      = (known after apply)
    + par_required                                     = (known after apply)
    + redirect_uris                                    = [
        + "https://dev.mydomain.com/cb",
          ]
    + refresh_token_duration                           = 14400
    + request_object_encryption_alg_match_required     = (known after apply)
    + request_object_encryption_enc_match_required     = (known after apply)
    + request_object_required                          = (known after apply)
    + request_sign_alg                                 = (known after apply)
    + requestable_scopes                               = [
        + "openid",
        + "profile",
          ]
    + requestable_scopes_enabled                       = (known after apply)
    + response_types                                   = [
        + "CODE",
          ]
    + subject_type                                     = (known after apply)
    + tls_client_certificate_bound_access_tokens       = (known after apply)
    + token_auth_method                                = (known after apply)
    + token_auth_sign_alg                              = (known after apply)
    + user_info_sign_alg                               = (known after apply)
      }

# authlete_service.as will be created
+ resource "authlete_service" "as" {
    + access_token_type                     = (known after apply)
    + api_secret                            = (known after apply)
    + client_id_alias_enabled               = false
    + dcr_scope_used_as_requestable         = (known after apply)
    + description                           = "A terraform based service for managing the dev Authlete based OAuth server"
    + direct_authorization_endpoint_enabled = false
    + direct_introspection_endpoint_enabled = (known after apply)
    + direct_jwks_endpoint_enabled          = false
    + direct_revocation_endpoint_enabled    = (known after apply)
    + direct_token_endpoint_enabled         = (known after apply)
    + direct_user_info_endpoint_enabled     = false
    + id                                    = (known after apply)
    + ignore_port_loopback_redirect         = (known after apply)
    + issuer                                = "https://as.mydomain.com"
    + service_name                          = "MyDomainAS_dev"
    + single_access_token_per_subject       = (known after apply)
    + supported_claim_types                 = (known after apply)
    + supported_displays                    = (known after apply)
    + supported_grant_types                 = [
        + "AUTHORIZATION_CODE",
          ]
    + supported_introspection_auth_methods  = (known after apply)
    + supported_response_types              = [
        + "CODE",
          ]
    + supported_revocation_auth_methods     = (known after apply)
    + supported_token_auth_methods          = (known after apply)
      }

Plan: 2 to add, 0 to change, 0 to destroy.

Changes to Outputs:
+ api_key       = (known after apply)
+ api_secret    = (sensitive value)
+ client_id     = (known after apply)
+ client_secret = (sensitive value)
  authlete_service.as: Creating...
  authlete_service.as: Creation complete after 6s [id=7976331828884]
  authlete_client.portal: Creating...
  authlete_client.portal: Creation complete after 1s [id=6212183744127375]

Apply complete! Resources: 2 added, 0 changed, 0 destroyed.

Outputs:

api_key = "7976331828884"
api_secret = <sensitive>
client_id = "6212183744127375"
client_secret = <sensitive>

The administrator that has created the service and client can share the output values with the development team and the developer can configure their client with the redirect uri https://dev.mydomain.com/cb (probably resolving to 127.0.0.1).

When the development reaches a stage where the test env is available, the administrator can run the sequence of command below:

% terraform workspace new test
Created and switched to workspace "test"!

You're now on a new, empty workspace. Workspaces isolate their state,
so if you run "terraform plan" Terraform will not see any existing state
for this configuration.

% terraform apply --auto-approve

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # authlete_client.portal will be created
  + resource "authlete_client" "portal" {
      + access_token_duration                            = 30
      + apikey                                           = (known after apply)
      + apisecret                                        = (sensitive value)
      + application_type                                 = (known after apply)
      + auth_time_required                               = (known after apply)
      + authorization_sign_alg                           = (known after apply)
      + bc_delivery_mode                                 = (known after apply)
      + bc_request_sign_alg                              = (known after apply)
      + bc_user_code_required                            = (known after apply)
      + client_id                                        = (known after apply)
      + client_id_alias                                  = "portal_client"
      + client_id_alias_enabled                          = false
      + client_name                                      = "Customer Portal client - test"
      + client_secret                                    = (sensitive value)
      + client_type                                      = "CONFIDENTIAL"
      + created_at                                       = (known after apply)
      + derived_sector_identifier                        = (known after apply)
      + developer                                        = "mydomain"
      + dynamically_registered                           = (known after apply)
      + front_channel_request_object_encryption_required = (known after apply)
      + grant_types                                      = [
          + "AUTHORIZATION_CODE",
          + "REFRESH_TOKEN",
        ]
      + id                                               = (known after apply)
      + id_token_sign_alg                                = (known after apply)
      + modified_at                                      = (known after apply)
      + par_required                                     = (known after apply)
      + redirect_uris                                    = [
          + "https://test.mydomain.com/cb",
        ]
      + refresh_token_duration                           = 14400
      + request_object_encryption_alg_match_required     = (known after apply)
      + request_object_encryption_enc_match_required     = (known after apply)
      + request_object_required                          = (known after apply)
      + request_sign_alg                                 = (known after apply)
      + requestable_scopes                               = [
          + "openid",
          + "profile",
        ]
      + requestable_scopes_enabled                       = (known after apply)
      + response_types                                   = [
          + "CODE",
        ]
      + subject_type                                     = (known after apply)
      + tls_client_certificate_bound_access_tokens       = (known after apply)
      + token_auth_method                                = (known after apply)
      + token_auth_sign_alg                              = (known after apply)
      + user_info_sign_alg                               = (known after apply)
    }

  # authlete_service.as will be created
  + resource "authlete_service" "as" {
      + access_token_type                     = (known after apply)
      + api_secret                            = (known after apply)
      + client_id_alias_enabled               = false
      + dcr_scope_used_as_requestable         = (known after apply)
      + description                           = "A terraform based service for managing the test Authlete based OAuth server"
      + direct_authorization_endpoint_enabled = false
      + direct_introspection_endpoint_enabled = (known after apply)
      + direct_jwks_endpoint_enabled          = false
      + direct_revocation_endpoint_enabled    = (known after apply)
      + direct_token_endpoint_enabled         = (known after apply)
      + direct_user_info_endpoint_enabled     = false
      + id                                    = (known after apply)
      + ignore_port_loopback_redirect         = (known after apply)
      + issuer                                = "https://as.mydomain.com"
      + service_name                          = "MyDomainAS_test"
      + single_access_token_per_subject       = (known after apply)
      + supported_claim_types                 = (known after apply)
      + supported_displays                    = (known after apply)
      + supported_grant_types                 = [
          + "AUTHORIZATION_CODE",
        ]
      + supported_introspection_auth_methods  = (known after apply)
      + supported_response_types              = [
          + "CODE",
        ]
      + supported_revocation_auth_methods     = (known after apply)
      + supported_token_auth_methods          = (known after apply)
    }

Plan: 2 to add, 0 to change, 0 to destroy.

Changes to Outputs:
  + api_key       = (known after apply)
  + api_secret    = (sensitive value)
  + client_id     = (known after apply)
  + client_secret = (sensitive value)
authlete_service.as: Creating...
authlete_service.as: Creation complete after 7s [id=8022405976815]
authlete_client.portal: Creating...
authlete_client.portal: Creation complete after 0s [id=6212196073089961]

Apply complete! Resources: 2 added, 0 changed, 0 destroyed.

Outputs:

api_key = "8022405976815"
api_secret = <sensitive>
client_id = "6212196073089961"
client_secret = <sensitive>

Now we have the test environment configured and two different workspaces: one for managing development and another one for test. If we go ahead and create a third one for production, we will have 3 services declared in the Service Owner Console, with the same configuration but not sharing its secrets.

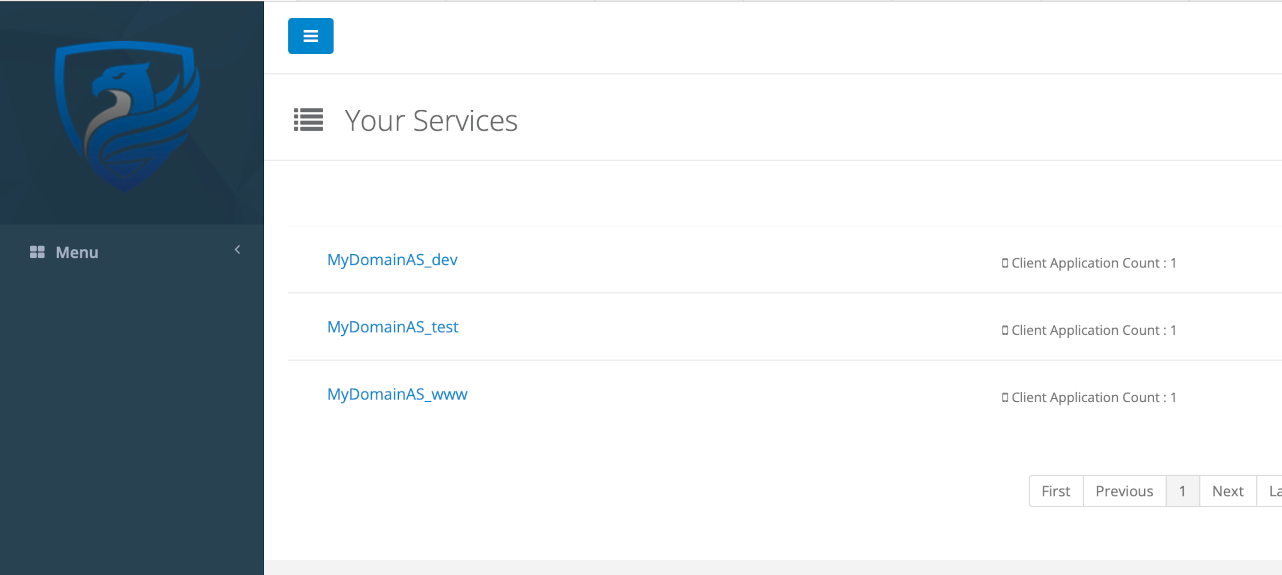

Different services managed by different workspaces

Using the Terraform workspace approach on a CI/CD pipeline can be very handy and remove some of the manual configuration tasks that might cause the services to diverge. Please note that some tools for CI/CD already have the Terraform workspace managed, like Gitlab CI/CD.

Check out the next section about generating and maintaining the cryptographic keys of services and clients, where the CI/CD pipelines can create a much higher value to your organization.

Next Step
