Financial-grade Amazon API Gateway

Introduction

This tutorial shows how to protect APIs built on Amazon API Gateway more securely than ever before by utilizing “certificate-bound access tokens”.

Once a traditional OAuth access token is leaked, an attacker can access APIs with the access token. Traditional access tokens are like a train ticket which anyone can use once it is stolen.

The vulnerability can be mitigated by requiring the API caller to present not only an access token but also evidence that proves the API caller is the legitimate holder of the access token. The evidence is called “proof of possession”, which is often shortened to PoP. Access tokens that need PoP on their use are like a plane ticket for international flight whose boarding procedure requires the passenger to present not only the ticket but also her passport.

RFC 8705, OAuth 2.0 Mutual-TLS Client Authentication and Certificate-Bound Access Tokens, has standardized a PoP mechanism. The mechanism is called MTLS in the OAuth community, but I personally call it “certificate binding” to avoid confusion. Anyway, in short, the mechanism requires the API caller to present not only an access token but also the same X.509 certificate as was used when the access token was issued from the token endpoint. The diagram below illustrates the concept of certificate binding.


Certificate Binding

You may know Financial-grade API (FAPI). It is a specification built on top of OAuth 2.0 and OpenID Connect for enhanced API security. UK Open Banking has adopted FAPI as the base of Open Banking Profile and now other countries are following. The point I want you to pay attention to here is that FAPI requires certificate binding as a must technical component.

The major premise for cetificate binding is that connections between APIs and client applications are established by using mutual TLS where client applications are required to present their X.509 client certificate during TLS handshake. On September 17, 2020, AWS finally announced in Introducing mutual TLS authentication for Amazon API Gateway that Amazon API Gateway has become ready for mutual TLS. Amazon API Gateway has opened a door to Financial-grade API security.

Authorizer’s Role

Amazon API Gateway provides a mechanism called Lambda Authorizer whereby you can implement custom logic for API protection. A Lambda authorizer that offers OAuth-based API protection extracts an access token and a client certificate from an API call and performs the following validation.

  1. the access token exists,
  2. the access token has not expired,
  3. the access token covers scopes required to access the resource,
  4. the access token has not been revoked, and
  5. the access token is bound to the client certificate. (certificate binding)

Then, the authorizer takes one of the following actions based on the result of the validation.

  • return an IAM policy that allows the resource access.
  • return an IAM policy that denies the resource access.
  • throw an exception with an error message 'Unauthorized' to tell Amazon API Gateway to reject the resource access with HTTP status code “401 Unauthorized”.
  • throw an exception with a different error message to tell Amazon API Gateway to reject the resource access with HTTP status code “500 Internal Server Error”.

Authorizer Implementation

The lambda authorizer implementation I’m going to show you soon delegates validation of access token to Authlete’s introspection API (/api/auth/introspection), so the authorizer implementation won’t contain complex logic. The diagram below depicts the relationship among Amazon API Gateway, Lambda Authorizer and Authlete.


Amazon API Gateway, Lambda Authorizer and Authlete

In addition, because Authorizer class in Authlete’s Python library does almost all the necessary stuff, implementations can be very small. Actually, the code below is a complete example of Lambda authorizer implementation that supports certificate binding.

from authlete.aws.apigateway.authorizer import Authorizer

authorizer = Authorizer()

def lambda_handler(event, context):
    return authorizer.handle(event, context)

Scopes Required For Resource Access

In real cases, however, you will need to configure which resource requires what scopes. This can be achieved by either (1) giving a function to Authorizer’s handle() method or (2) making a subclass of Authorizer and overriding determine_scopes() method in the subclass.

Both the function and the method take 4 arguments as listed in the table below and are required to return a list of scope names that are necessary to access the resource.

Argument Description
event The event given to the authorizer.
context The context given to the authorizer.
method The HTTP method of the resource access.
path The path of the resource.

Two examples below have the same effect stating that time:query scope is required to access time resource by HTTP GET method.

from authlete.aws.apigateway.authorizer import Authorizer

authorizer = Authorizer()

def determine_scopes(event, context, method, path):
    if method == 'GET' and path == 'time':
        return ['time:query']

    return None

def lambda_handler(event, context):
    return authorizer.handle(event, context, determine_scopes)
from authlete.aws.apigateway.authorizer import Authorizer

class CustomAuthorizer(Authorizer):
    def determine_scopes(self, event, context, method, path):
        if method == 'GET' and path == 'time':
            return ['time:query']

        return None

authorizer = CustomAuthorizer()

def lambda_handler(event, context):
    return authorizer.handle(event, context)

Policy Or Exception

To conform to specifications related to OAuth 2.0, a Lambda authorizer has to tell Amazon API Gateway to return “401 Unauthorized” to the API caller in some cases (e.g. when the presented access token has expired). According to AWS’s technical documents and sample programs, the authorizer has to throw an exception with a message 'Unauthorized' to achieve it. However, such simple exception drops all valuable information about the “Unauthorized” response and makes debugging very hard.

Therefore, by default, in other words, when policy property is True (default), Authorizer’s handle() method always returns an IAM policy which represents either “Allow” or “Deny” even in error cases where an exception with a message 'Unauthorized' should be thrown.

If you want to make Authorizer throw an exception in “Unauthorized” and “Internal Server Error” cases, set False to policy property. You can achieve it by giving policy=False to Authorizer’s constructor.

authorizer = Authorizer(policy=False)

Context In Policy

Authorizer’s handle() method returns a dict instance which represents an IAM policy. In the dictionary, there is context key whose value is a dictionary. Authorizer embeds some pieces of information there. The table below shows keys that context dictionary may contain.

Property Description
introspection_request JSON string that represents the request to Authlete’s introspection API.
introspection_response JSON string that represents the response from Authlete’s introspection API.
introspection_exception String that represents an exception raised during the call to Authlete’s introspection API.
scope String of a space-delimited list of scopes covered by the presented access token.
client_id The client ID of the client application to which the access token was issued.
sub String that represents the subject of the resource owner who permitted issuance of the access token to the client application.
exp The expiration datetime of the access token in seconds since the Unix epoch (January 1, 1970).
challenge The value for WWW-Authenticate HTTP header in error cases.
action The value of action in the response from the Authlete’s introspection API.
resultMessage The value of resultMessage in the response from the Authlete’s introspection API.

You can add entries to context by overriding update_policy_context() method in a subclass of Authorizer. Be careful not to use JSON object and array as values in context. This is a technical restriction imposed by AWS.

class CustomAuthorizer(Authorizer):
    def update_policy_context(self, event, context, request, response, exception, ctx):
        ctx.update({
            'my_key': 'my_value'
        })

Entries in context in the policy returned from a Lambda authorizer can be used at other places later. See Output from an Amazon API Gateway Lambda authorizer for details.

Hooks

Authorizer class offers following hook methods for subclass implementations. Override them as necessary.

Method Description
determine_scopes() determines scopes required for the resource access.
update_policy_context() updates context that is to be embedded in the policy.
on_enter() is called when handle() method starts.
on_introspection_error() is called when the call to Authlete introspection API failed.
on_introspection() is called after Authlete introspection API succeeded.
on_allow() is called when an Allow policy is generated.
on_deny() is called when a Deny policy is generated.
on_unauthorized() is called when an exception for “Unauthorized” is thrown.
on_internal_server_error() is called when an exception for “Internal Server Error” is thrown.

Authorizer Configuration

Lambda Event Payload

The most important thing in creating a Lambda authorizer is to choose “Request” for Lambda Event Payload. Otherwise, the authorizer cannot access information about the client certificate. It means that the authorizer cannot check whether the access token is bound to the client certificate.

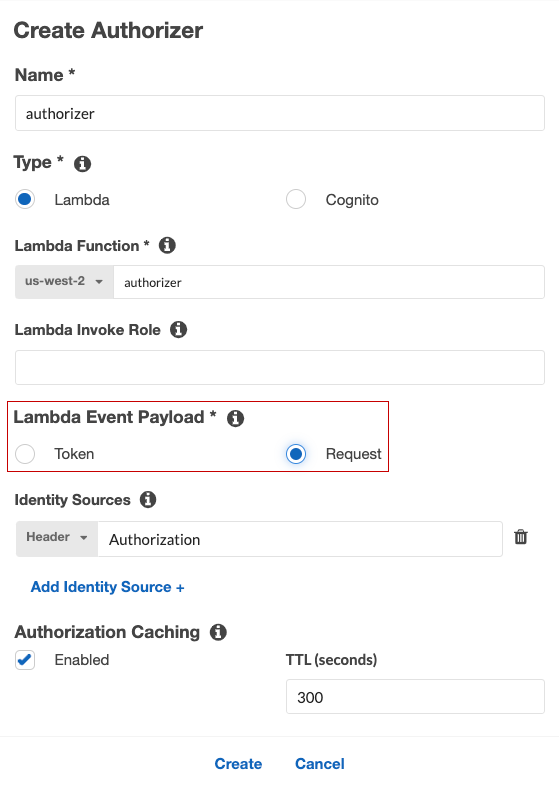

Create Authorizer

See Input to an Amazon API Gateway Lambda authorizer for details about how the choice of Lambda Event Payload type changes the input to the authorizer.

Environment Variables

If an instance of AuthleteApi is not given, Authorizer’s constructor internally creates one by calling AuthleteApiImpl(AuthleteEnvConfiguration()) and uses the instance to access Authlete APIs. Because AuthleteEnvConfiguration used there assumes that Authlete configuration is available via environment variables, the following environment variables need to be set to the Lambda function that is used as the implementation of your Lambda authorizer.

Environment variable Description
AUTHLETE_BASE_URL The base URL of Authlete server.
AUTHLETE_SERVICE_APIKEY The API key assigned to your service.
AUTHLETE_SERVICE_APISECRET The API secret assigned to your service.

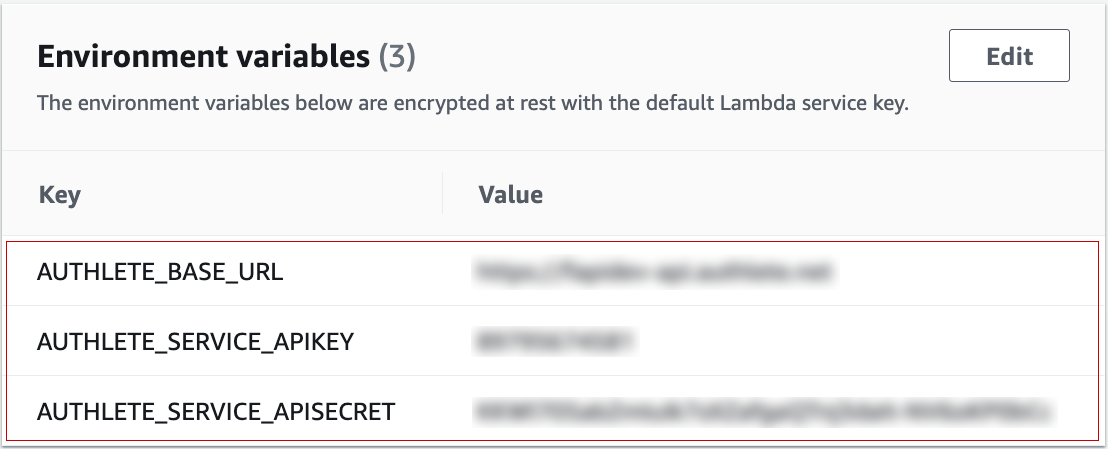

Lambda function environment variables

Timeout

It is recommended to increase the timeout value of the Lambda function from the default value because the call to Authlete’s introspection API may happen to take more time depending on various conditions.

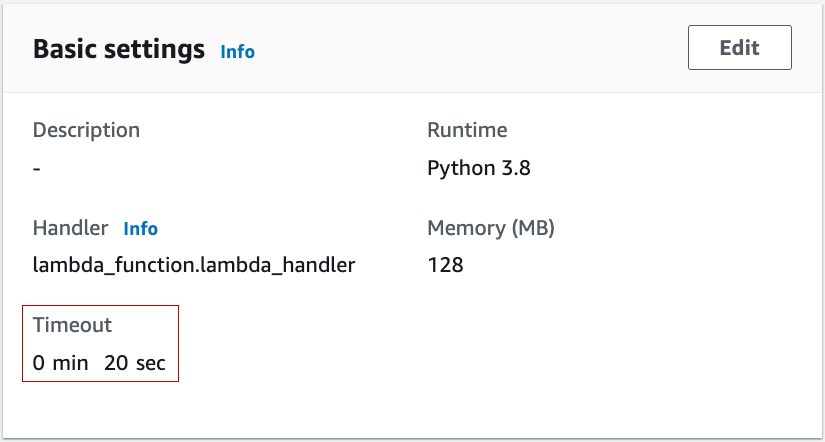

Lambda function timeout

Authorizer Packaging

How to create and upload a ZIP package of Lambda function is explained at Updating a function with additional dependencies in AWS Lambda deployment package in Python.

Below is an example that creates and uploads a ZIP file of Lambda authorizer with the authlete package.

~$ mkdir authorizer
~$ cd authorizer
~/authorizer$ vi lambda_function.py
~/authorizer$ pip install --target ./package authlete
~/authorizer$ (cd package; zip -r9 ../function.zip .)
~/authorizer$ zip -g function.zip lambda_function.py
~/authorizer$ aws lambda update-function-code --function-name authorizer --zip-file fileb://function.zip

Testing

Testing may be the hardest part in this tutorial because there are many steps to set up the testing environment illustrated below.

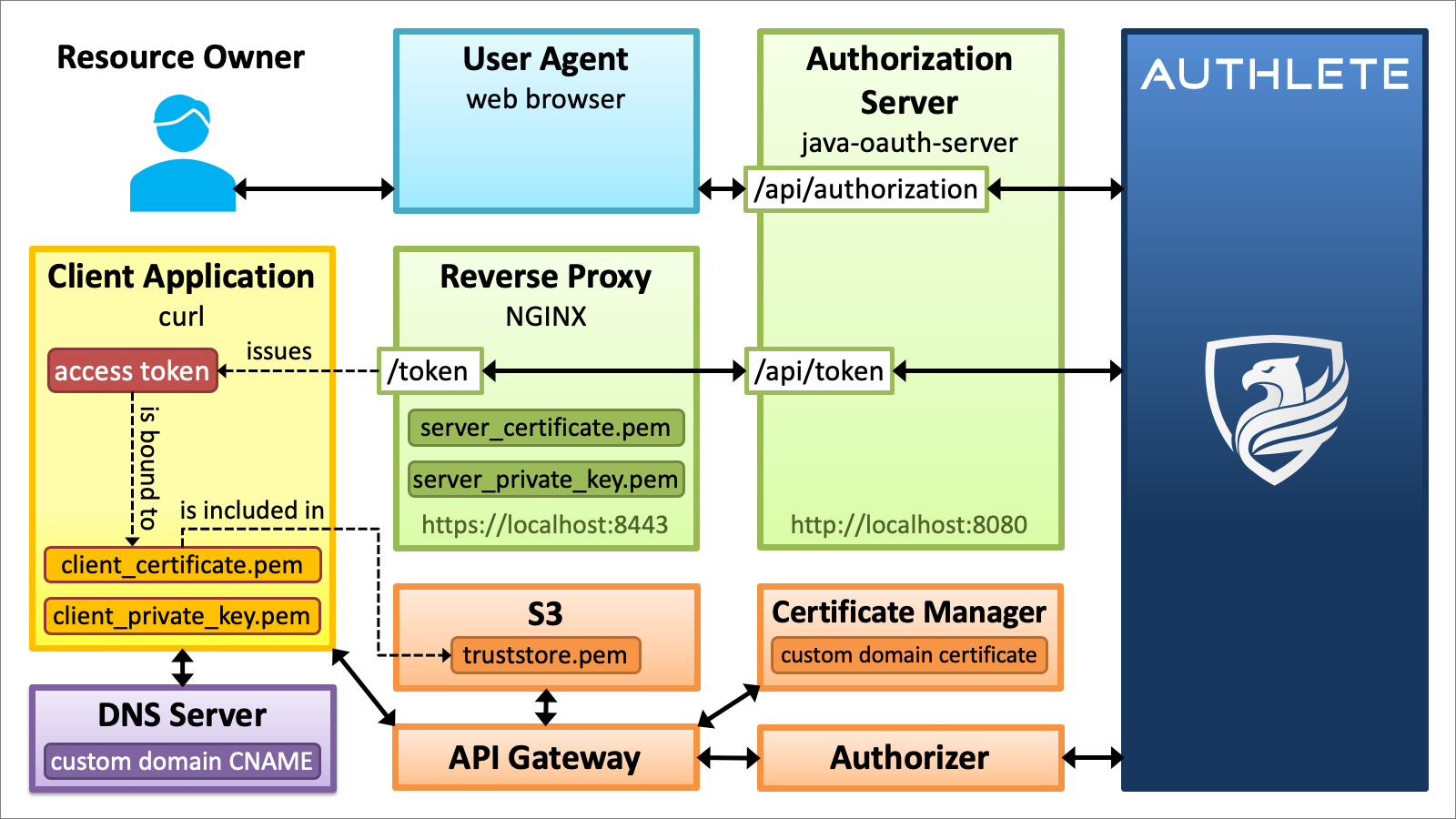

Components to test certificate binding

Let’s take the following steps one by one together.

  1. Prepare an authorization server that supports certificate binding.
  2. Prepare a server certificate for the authorization server.
  3. Set up a reverse proxy for mutual TLS at the token endpoint of the authorization server.
  4. Prepare a client application that is configured for certificate binding.
  5. Prepare a client certificate for the client application.
  6. Set up a custom domain for Amazon API Gateway.
  7. Get a certificate-bound access token.
  8. Access a resource (make an API call).

Authorization Server

Let’s use java-oauth-server as an authorization server. It’s a sample implementation of authorization server written in Java that uses Authlete as a backend service.

$ git clone https://github.com/authlete/java-oauth-server
$ cd java-oauth-server
$ vi authlete.properties
$ docker-compose up

Command lines above will start an authorization server (java-oauth-server) on your local machine at http://localhost:8080.

Then, login Service Owner Console and configure the service corresponding to the authorization server so that it can support certificate binding.

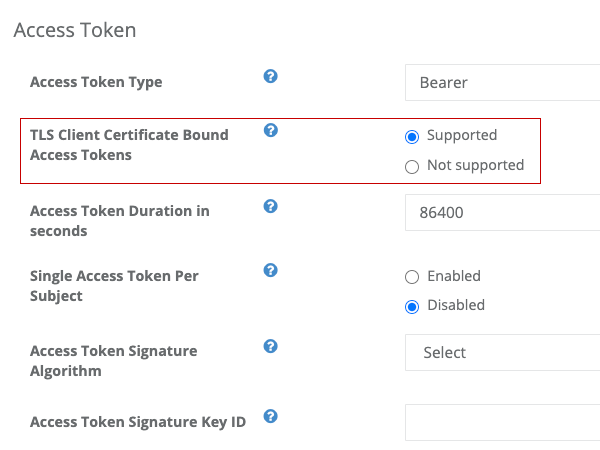

Service Configuration for Certificate Binding

Server Certificate

Create a private key and then a self-signed certificate for the authorization server.

$ openssl genpkey -algorithm EC -pkeyopt ec_paramgen_curve:P-256    > server_private_key.pem
$ openssl req -x509 -key server_private_key.pem -subj /CN=localhost > server_certificate.pem

Note that openssl command used in this tutorial is OpenSSL’s. Because openssl command installed on macOS is LibraSSL’s since High Sierra, you have to install OpenSSL’s openssl to try command lines in this tutorial as they are.

$ /usr/bin/openssl version -a
LibreSSL 2.6.5
......
$ brew install openssl
$ /usr/local/opt/openssl/bin/openssl version -a
OpenSSL 1.1.1g  21 Apr 2020
......

Reverse Proxy

Because java-oauth-server itself does not protect its endpoints by TLS, a reverse proxy needs to be placed in front of java-oauth-server to accept TLS connections. Below is an example of configuration file that sets up Nginx as a reverse proxy.

events {}
http {
  server {
    # Accept TLS connections at port 8443.
    listen 8443 ssl;

    # Server certificate in PEM format
    ssl_certificate /path/to/server_certificate.pem;

    # Servicer private key in PEM format
    ssl_certificate_key /path/to/server_private_key.pem;

    # Enable mutual TLS. 'optional_no_ca' requests a client certificate but
    # does not require it to be signed by a trusted CA certificate. This is
    # enough for this tutorial. See the document of ngx_http_ssl_module for
    # details: http://nginx.org/en/docs/http/ngx_http_ssl_module.html
    ssl_verify_client optional_no_ca;

    # Pass the client certificate in the mutual TLS connection to the proxied
    # server (java-oauth-server) as the value of 'X-Ssl-Cert' HTTP header.
    # The proxied server has to be able to recognize the HTTP header, and
    # java-oauth-server does recognize it. To be exact, authlete-java-jaxrs
    # library used by java-oauth-server recognizes it.
    proxy_set_header X-Ssl-Cert $ssl_client_escaped_cert;

    # Pass requests that Nginx receives at 'https://localhost:8443/token' to
    # 'http://localhost:8080/api/token' ('/api/token' of java-oauth-server).
    # Note that TLS is terminated here.
    location = /token {
      proxy_pass http://localhost:8080/api/token;
    }
  }
}

This configuration makes Nginx run at https://localhost:8443 and forward requests to /token to http://localhost:8080/api/token.

If the name of the configuration file is nginx.conf, Nginx can be started by typing the command below.

$ nginx -c $PWD/nginx.conf

When you want to stop Nginx, type this:

$ nginx -s stop

Client Application

Login Developer Console and change the configuration of a client application you are going to use for testing to enable certificate binding.

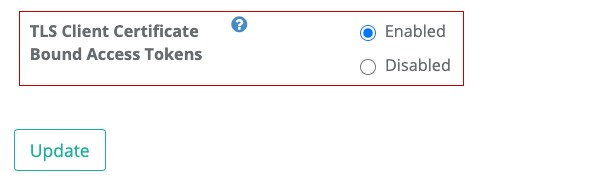

Client Configuration for Certificate Binding

Client Certificate

Create a private key and then a self-signed certificate for the client application.

$ openssl genpkey -algorithm EC -pkeyopt ec_paramgen_curve:P-256 > client_private_key.pem
$ openssl req -x509 -key client_private_key.pem -subj /CN=client.example.com > client_certificate.pem

Create one more pair of private key and certificate to use for testing later. Make sure to specify a different value for the common name (for /CN=) because the custom domain configuration of Amazon API Gateway, which we’ll cover in the next section, rejects a truststore file that contains certificates having the same subject.

$ openssl genpkey -algorithm EC -pkeyopt ec_paramgen_curve:P-256 > client_private_key_2.pem
$ openssl req -x509 -key client_private_key_2.pem -subj /CN=client2.example.com > client_certificate_2.pem

Custom Domain

To enable mutual TLS on Amazon API Gateway, at the time of this writing, you have to assign a custom domain (e.g. api.example.com) to your API.

The Web console of Amazon API Gateway provides “Custom domain names” menu. To set up a custom domain there smoothly, it is better to prepare the following items beforehand.

  1. Server certificate for the custom domain
  2. Truststore, a file containing trusted client certificates in PEM format

Server Certificate For Custom Domain

A server certificate for a custom domain for Amazon API Gateway must be under management of AWS Certificate Manager (ACM). You can import existing certificates or create new ones at ACM console. However, imported certificates cannot be used for custom domains for Amazon API Gateway when mutual TLS is enabled. So, create a new one there.

Truststore

When you setup mutual TLS, you will be asked to input the location of a file that contains trusted client certificates. The file is called “truststore”. The implementation of Amazon API Gateway mutual TLS checks whether the client certificate presented during the TLS handshake is included in the truststore. If it is not included, Amazon API Gateway rejects the connection without invoking a Lambda authorizer.

Truststore is a text file listing client certificates in PEM format like below.

-----BEGIN CERTIFICATE-----
<Certificate contents>
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
<Certificate contents>
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
<Certificate contents>
-----END CERTIFICATE-----
...

A truststore for this tutorial can be created by typing the commands below.

$ cat client_certificate.pem   >  truststore.pem
$ cat client_certificate_2.pem >> truststore.pem

The truststore needs to be uploaded to S3 so that Amazon API Gateway can refer to it.

$ aws s3 cp truststore.pem s3://{your-s3-bucket}

Steps above are described in Configuring mutual TLS authentication for a REST API. See the document for details.

Custom Domain Setup

Now you are ready to register a custom domain to Amazon API Gateway.

Enable Mutual TLS authentication in “Domain details” box, and a field for Truststore URI will appear. Input the S3 URI of your truststore into the field.

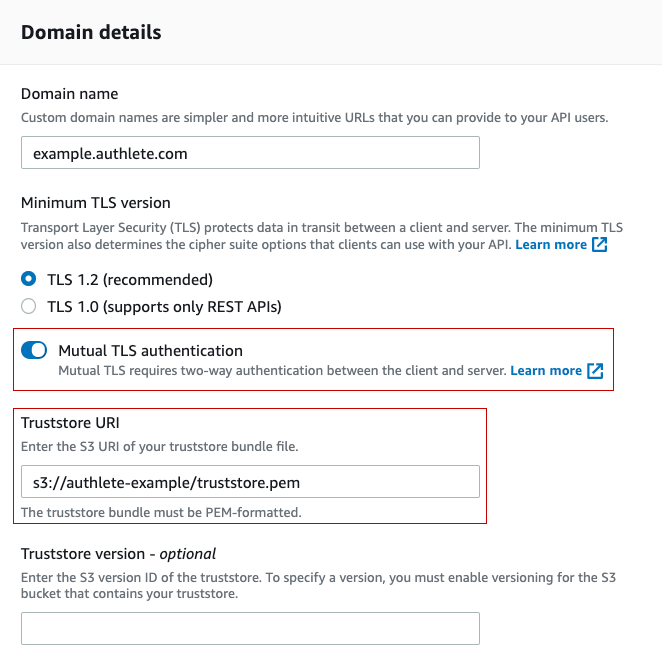

Custom Domain Details

Then, select the server certificate for the custom domain in “Endpoint configuration” box.

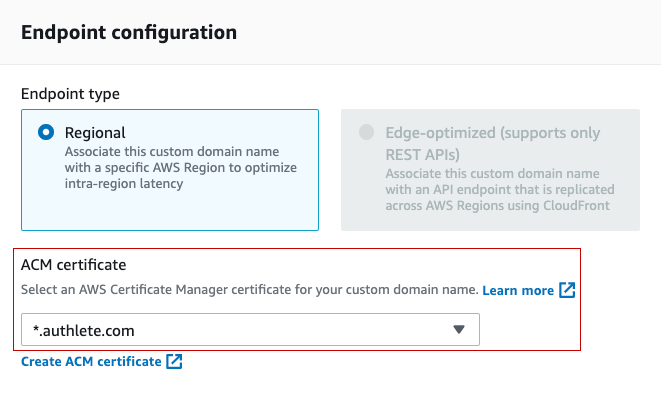

Custom Domain Endpoint Configuration

After registering a custom domain, you can configure how to map “API” & “Stage” to “Path” under the custom domain. In the screenshot below, “Example” API’s dev stage is mapped to the custom domain’s path dev.

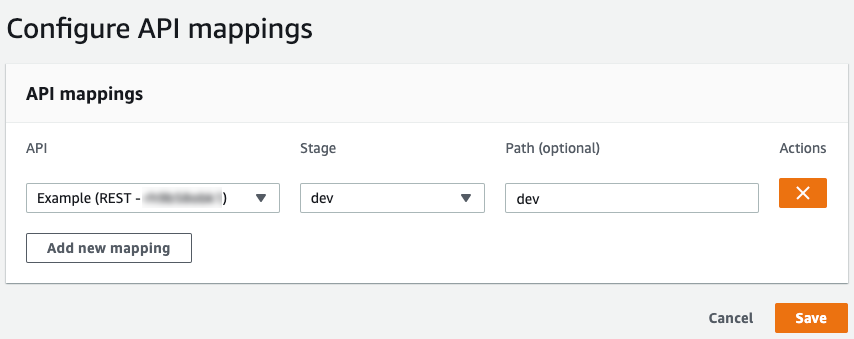

Configure API mappings

Routing

The final step for custom domain configuration is to add a CNAME record to your DNS server so that the custom domain can be routed to “API Gateway domain name”.

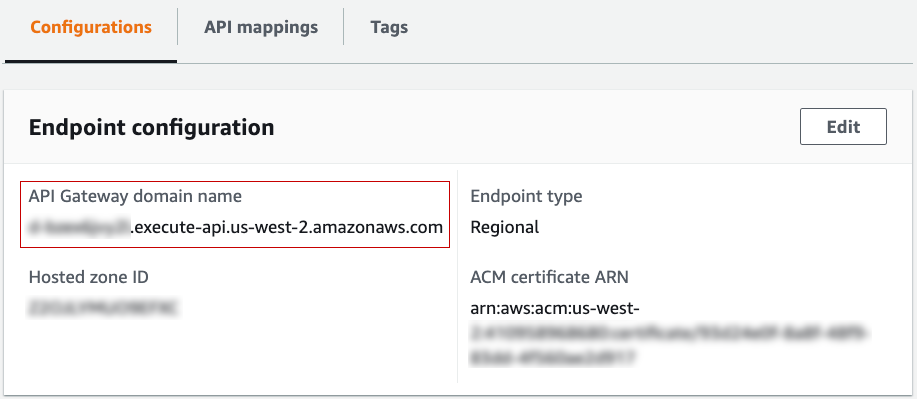

API Gateway domain name

Certificate-Bound Access Token

We have done all preparation. Let’s get a certificate-bound access token by the authorization code flow.

Authorization Request

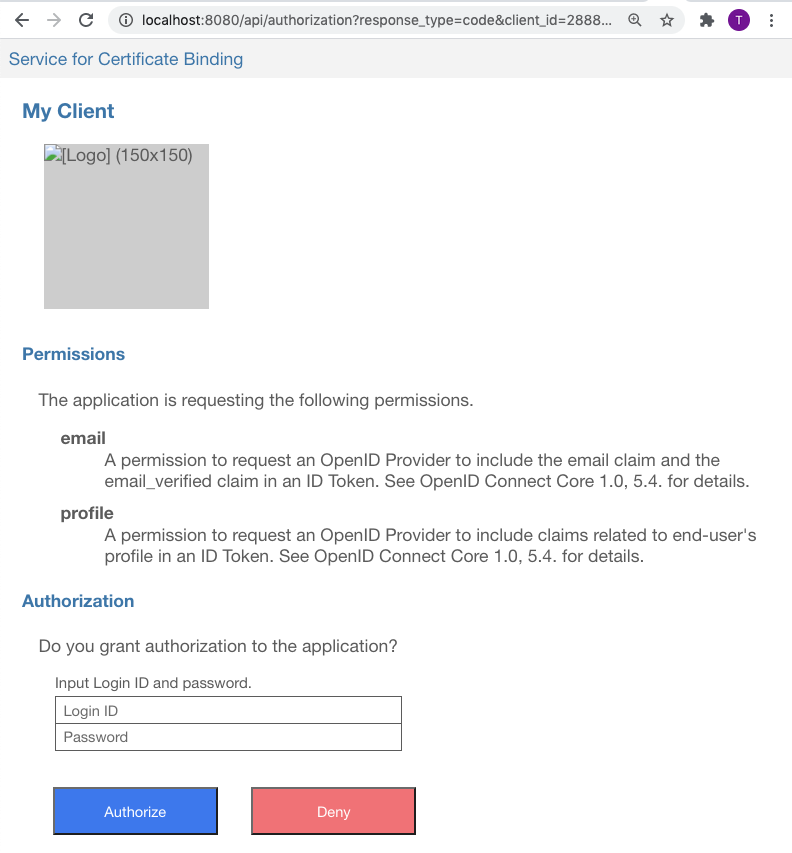

In the authorization code flow, the first step is to send an authorization request to the authorization endpoint of the authorization server via a web browser. In this tutorial, the authorization endpoint is http://localhost:8080/api/authorization hosted on java-oauth-server. Replace ${CLIENT_ID} in the URL below that represents an authorization request with the actual client ID of your client application and then access the URL with your web browser.

http://localhost:8080/api/authorization?response_type=code&client_id=${CLIENT_ID}&scope=profile+email&state=123

Your web browser will display an authorization page generated by the authorization server. It will look like below.


Authorization page in authorization code flow

The page has input fields for Login ID and Password. Input john and john there and press “Authorize” button, and your web browser will be redirected to the redirection endpoint of your client application.

If you have not changed redirect URI of your client application from the default value, the URL of the redirection endpoint is https://{authlete-server}/api/mock/redirection/{service-api-key}.

The URL of the redirection endpoint which you can see in the address bar of your browser contains code response parameter like below.

https://{authlete-server}/api/mock/redirection/{service-api-key}?state=123&code=RwRq2Lp0bJVMiLPKAFz4qB1hxieBD1X5HKuv8EPkJeM

The value of code response parameter is the authorization code which has been issued from the authorization server to your client application. The authorization code is needed when your client application makes a token request.

Token Request

After getting an authorization code, the client application sends a token request to the token endpoint of the authorization server. In this tutorial, the token endpoint is https://localhost:8443/token hosted on Nginx.

A token request can be made by curl command in a shell terminal. Below is an example of token request. Don’t forget to replace $CLIENT_ID and $CODE with the actual client ID and the actual authorization code before typing.

$ curl -k --key client_private_key.pem --cert client_certificate.pem https://localhost:8443/token -d grant_type=authorization_code -d client_id=$CLIENT_ID -d code=$CODE
Argument Description
-k not verify the server certificate. Because this tutorial uses a self-signed server certificate, this option is necessary.
--key client_private_key.pem specifies the private key of the client.
--cert client_certificate.pem specifies the certificate of the client.
https://localhost:8443/token The URL of the token endpoint.
-d grant_type=authorization_code indicates that the flow is the authorization code flow.
-d client_id=$CLIENT_ID specifies the client ID. Replace $CLIENT_ID with the actual client ID of your client application.
-d code=$CODE specifies the authorization code. Replace $CODE with the actual authorization code.

The point here is that it is necessary to pass the client’s private key and certificate to curl command by using --key option and --cert option because the token endpoint requires mutual TLS (i.e. requires a client certificate during TLS handshake). The access token being issued from the token endpoint will be bound to the client certificate used in the token request.

When a token request succeeds, the token endpoint returns JSON that includes access_token property like below.

{
  "access_token":  "b5qgqkXpzObRyceBqKeGPDCT9NX9GGXSt_oSYBSj7GQ",
  "refresh_token": "1iSpvpeznTzwdUJzwRbt-abqE4znWn_yhN5PbBKV9zw",
  "scope":         "email profile",
  "token_type":    "Bearer",
  "expires_in":    86400
}

The value of the access_token property is the issued access token. The client application uses the access token when it makes API calls.

Resource Access (API Call)

At last, we have become ready to access resources (APIs) on Amazon API Gateway which are protected by certificate-bound access tokens.

First, access a resource with the access token and the right client certificate. Replace ${ACCESS_TOKEN}, ${CUSTOM_DOMAIN} and ${RESOURCE} in the example below with actual values of yours. If all things have been set up correctly, you can get the resource successfully without being blocked.

$ curl --key client_private_key.pem --cert client_certificate.pem -H "Authorization: Bearer ${ACCESS_TOKEN}" https://${CUSTOM_DOMAIN}/${RESOURCE}

Next, access the resource with the same access token and a wrong client certificate (client_certificate_2.pem in this tutorial).

$ curl --key client_private_key_2.pem --cert client_certificate_2.pem -H "Authorization: Bearer ${ACCESS_TOKEN}" https://${CUSTOM_DOMAIN}/${RESOURCE}

You will receive the following error response.

{"Message":"User is not authorized to access this resource with an explicit deny"}

This inidicates that Amazon API Gateway rejected the resource access. The most important point here is that the resource access was rejected although the access token was a legitimate one and it was because the client certificate presented together was not the legitimate one bound to the access token. This is certificate binding.

Congratulations!

You’ve completed this tutorial and now can protect your APIs on Amazon API Gateway more securely than ever before utilizing certificate binding (RFC 8705)!

Contact us if you need support. You are always welcome!
