Understanding Service Access Tokens

Table of Contents

Introduction

This article describes Authlete’s Service Access Tokens (SATs).

A SAT is a bearer credential issued for a single Authlete service. It is the credential your Authorization Server, Resource Server, CLI scripts, or CI/CD pipelines present when calling Authlete’s runtime and service-administration APIs.

Permission customization, either via a preset or by selecting individual permissions, lets you scope a token to exactly what its caller needs, so a Resource Server only gets introspection rights, an administrative tool only gets the client-management rights it requires, and so on.

Token Properties

Token Name

A human-readable identifier used to distinguish tokens in the Service Access Tokens list. The name has no effect on token behavior or permissions.

Expiration Date

Specifies when the token will expire and become invalid.

If set, the token cannot be used after the specified date.
If not set, the token does not expire.

For tokens used by automation, an explicit expiration date is strongly recommended. The console renders any token expiring within one month in red.

Token Value

The token value is displayed only once, when the token is created or rotated.

It must be copied and stored securely at creation time.
The plain token value cannot be retrieved again after this step.

Rotation

Tokens can be rotated to generate a new value.

Rotation invalidates the previous token value immediately.
The new token value is displayed once and must be copied and saved.
Permissions and metadata (name, expiration) are preserved across rotation unless explicitly updated.

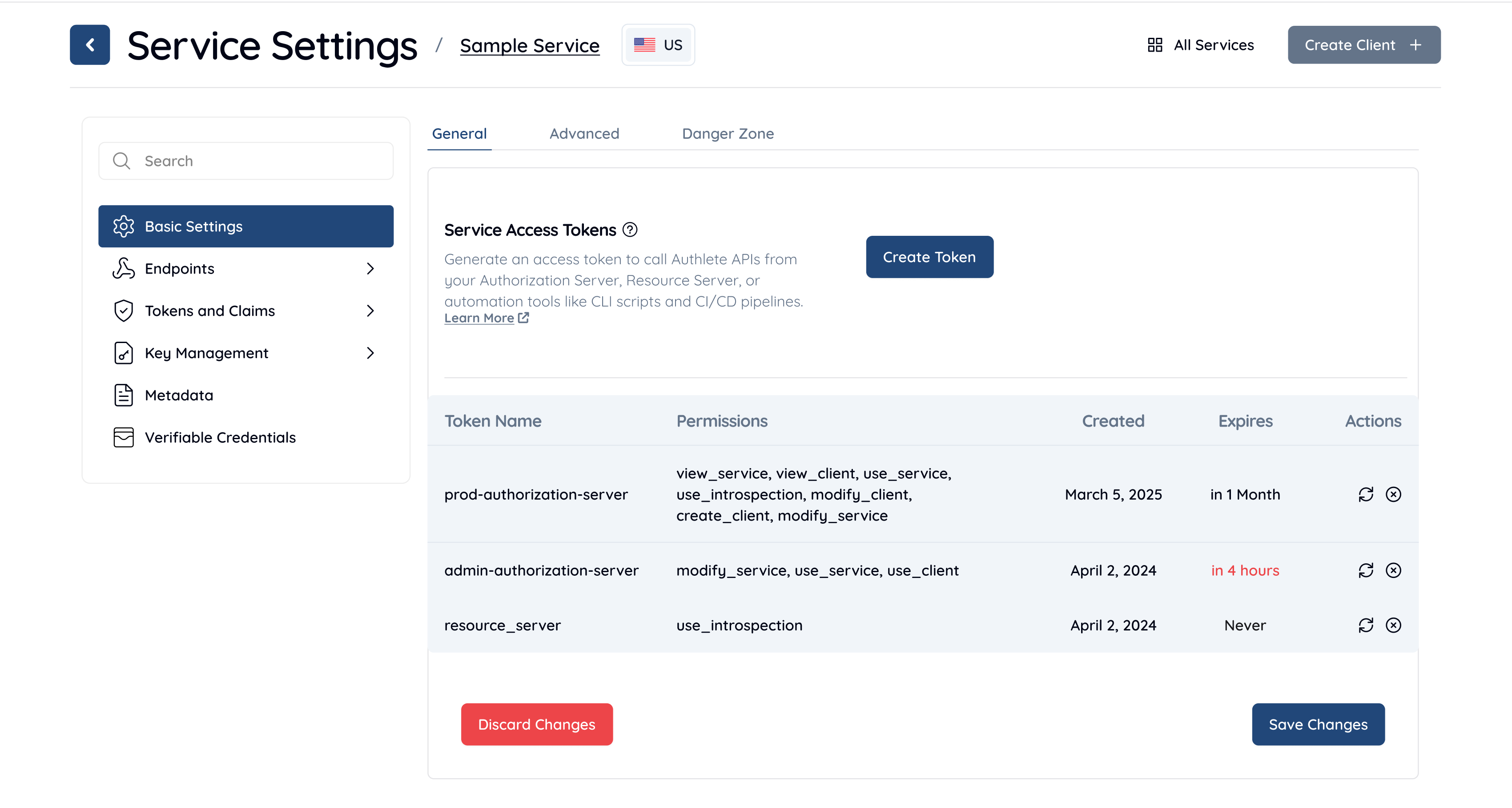

Token List

All Service Access Tokens are listed in a table with the following columns:

Token Name: User-defined identifier.
Permissions: Assigned permissions for the token.
Created: Date the token was created.
Expires: Expiration date, or no expiry if not set.
Actions: Available operations such as rotation or deletion.

Permission Presets

Pre-configured permission sets aligned to standard OAuth 2.0 roles. Selecting a preset applies a fixed combination of permissions; if you then add or remove permissions manually, the preset is cleared.

Preset	Description	Permissions
Authorization Server	Grants access to all runtime OAuth/OIDC endpoints required by a standard Authorization Server.	`use_service`
Admin Authorization Server	Default selection. Full administrative control over the service. Includes runtime endpoints, client management, and service configuration.	`modify_service`
Resource Server	Minimal access required to validate access tokens at a Resource Server.	`use_introspection`

Custom Permissions

Permissions can be selected individually when a preset does not match your use case. Permissions follow the inheritance rules described in Permission Inheritance and selecting a higher-level permission implicitly grants the lower-level ones.

If both preset and permissions are omitted, the Create button is disabled. You must select a preset or at least one permission before the token can be issued. If a preset is selected and the caller then adds or removes individual permissions, the preset is cleared.

`use_service`

Runtime OAuth/OIDC operations. The standard permission for an Authorization Server deployment. Allows calling:

/auth/authorization
/auth/token
/auth/userinfo
/auth/introspection
/auth/revocation
/pushed_auth_req
/service/configuration
/service/jwks/get
/backchannel/authentication
/device/authorization
/device/verification
/device/complete
/federation/*
/vci/* (Verifiable Credentials)
/jose/verify
/idtoken/reissue
/token/create
/token/update
/token/delete
/token/revoke
/token/get/list
/rs/sign
/hsk/get
/client/authorization/get/list
/client/registration (Dynamic Client Registration)

Also implicitly grants use_introspection, view_service, and view_client.

`use_introspection`

Token introspection only. The minimum permission a Resource Server needs to validate access tokens. Allows calling:

/auth/introspection
/auth/introspection/standard

Does not grant access to authorization, token, or other runtime endpoints.

`view_service`

Read service configuration. Allows calling:

/service/get
/service/get/list

Also implicitly grants view_client. Use this for monitoring dashboards or read-only integrations.

`view_client`

Read client details. Allows calling:

/client/get
/client/get/list
/client/granted_scopes/get
/client/extension/requestable_scopes/get

Does not allow creating, modifying, or deleting clients. Use this for audit tools or dashboards that inspect client registrations.

`modify_client`

Update and delete clients, including the endpoints required to perform user logout via authorization deletion. Allows calling:

/client/update
/client/delete
/client/secret/update
/client/secret/refresh
/client/lock_flag/update
/client/extension/requestable_scopes/update
/client/granted_scopes/delete
/client/authorization/delete (user session revocation / logout)
/client/authorization/update

Also implicitly grants view_client.

`create_client`

/client/create
/client/get/default

Also implicitly grants use_service, modify_client, view_service, and view_client. Use this for platforms that dynamically provision OAuth clients.

`modify_service`

Full service administration. Allows calling:

/service/update
/hsk/create
/hsk/delete
/client/extension/requestable_scopes/delete

Subsumes all other SAT permissions. Use this for admin tools or CI/CD pipelines that need complete control over the service.

Known issue: modify_service does not currently grant use_introspection implicitly. See Troubleshooting 403 Errors for the workaround.

Permission Inheritance

Higher-level permissions implicitly grant the lower-level permissions they depend on. The inheritance chain is:

modify_service → all permissions
create_client → use_service, modify_client, view_service, view_client
use_service → use_introspection, view_service, view_client
modify_client → view_client
view_service → view_client

Using a Service Access Token

Send the token as a bearer credential on the Authorization header of any Authlete service-level API call. Pair it with your Service ID and the appropriate API server URL.

The following is an example token-endpoint call from an Authorization Server using a SAT that holds the use_service permission.

curl --oauth2-bearer ${SERVICE_ACCESS_TOKEN} \
  https://${AUTHLETE_SERVER}/api/${SERVICE_ID}/auth/token \
  --data-urlencode "parameters=grant_type=authorization_code&code=…&redirect_uri=…" \
  --data-urlencode "clientId=client001" \
  --data-urlencode "clientSecret=${CLIENT_SECRET}"

The following is an example introspection call from a Resource Server using a SAT that holds only use_introspection.

curl --oauth2-bearer ${SERVICE_ACCESS_TOKEN} \
  https://${AUTHLETE_SERVER}/api/${SERVICE_ID}/auth/introspection \
  --json '{
  "token": "${ACCESS_TOKEN_TO_VALIDATE}"
}'

The API server checks the token’s permissions on every call. If the token does not hold the permission required by the endpoint, the response is 403 Forbidden. For example, a token holding only use_introspection cannot call /auth/token.

How the Console Issues a Token

Service Access Tokens are issued by the Authlete IdP’s /api/servicetoken/create endpoint. The Management Console calls this endpoint on your behalf when an administrator clicks Create Token; the endpoint authenticates the caller as an IdP user (via session or user access token) and requires the MODIFY_SERVICE privilege on the target service. Service Access Tokens and Organization Access Tokens are not accepted as the bearer credential for this endpoint.

The request body the console submits has the following shape.

Request Parameter	Necessity	Description
`serviceId`	REQUIRED	The ID of the service the token is scoped to.
`organizationId`	REQUIRED	The ID of the organization that owns the service.
`apiServerId`	REQUIRED	The ID of the API server (cluster) hosting the service.
`description`	REQUIRED	Human-readable name shown in the console and used to distinguish tokens.
`preset`	REQUIRED	One of `standard_as`, `admin_as`, `resource_server`, or `custom`.
`permissions`	CONDITIONAL	Explicit permission list. Required when `preset` is `custom`; rejected for any other preset. Permissions must be drawn from `use_service`, `use_introspection`, `view_service`, `view_client`, `create_client`, `modify_client`, `modify_service`.
`durationSeconds`	OPTIONAL	Lifetime of the token, in seconds from creation. Omit (or set to `null`) for a token that never expires.

The response body shape is as follows.

{
  "serviceId": 12345,
  "organizationId": 67890,
  "apiServerId": 111,
  "accessToken": "sat_3Yq9bP0u1NiqU6Pz_uIH7n3Z2bP7Sg5K…",
  "tokenId": "01HW…",
  "description": "prod-as",
  "permissions": ["use_service"],
  "createdAt": "2026-05-12T07:34:22Z",
  "expiresAt": "2026-06-11T07:34:22Z"
}

The accessToken field is returned only once. It cannot be retrieved again afterwards; copy it to a secrets manager immediately. The same single-display rule applies to the value returned by token rotation.

Troubleshooting 403 Errors

If an Authlete API call fails with HTTP 403 Forbidden, the response body includes a resultMessage that names the exact permission the endpoint requires.

[A457101] (/client/create) Function requires access rights ([CREATE_CLIENT])
for service (233044842478), access token does not have sufficient access.

[A456101] (/client/delete/{clientIdentifier}) Function requires access rights
([MODIFY_CLIENT]) for service (1495709902) and client (4140464843).

Map the bracketed access right (for example [CREATE_CLIENT], [MODIFY_CLIENT]) to a permission in Custom Permissions and reissue the token with that permission. Two options:

Recreate the token with a preset that covers the operation. For client-management calls, the Admin Authorization Server preset (modify_service) covers every client-management and service-management endpoint.
Recreate the token with custom permissions. Select only the access right the error message named (or its lowest-level ancestor in Permission Inheritance). For example, a workload that only needs to provision and update clients should hold create_client; that single permission implicitly grants use_service, modify_client, view_service, and view_client.

The use_service permission (applied by the Authorization Server preset) grants the runtime OAuth/OIDC endpoints required by a standard Authorization Server, but it does not grant /client/create or /client/delete. Workloads that need to register or remove clients (for example a CI pipeline that provisions test clients, or a self-service developer portal) must be issued a token with create_client or modify_client, or use the Admin Authorization Server preset (modify_service, which is the default selection).

Known issue: The introspection endpoints (/auth/introspection and /auth/introspection/standard) currently require an explicit use_introspection permission on the token. The modify_service and create_client permissions do not implicitly grant use_introspection (inheritance in the underlying AccessRight enum is direct, not transitive), so a token issued with the Admin Authorization Server preset, or a custom token holding only modify_service or create_client, will fail /auth/introspection with HTTP 403 / A457101.

Workaround: Issue introspection-calling tokens with the Custom preset and include use_introspection explicitly alongside the higher-level permission — for example ["modify_service", "use_introspection"] or ["create_client", "use_introspection"]. Tokens issued with this combination will continue to function unchanged once the underlying bug is fixed, so the workaround is forward-compatible. The Authorization Server preset (use_service) and Resource Server preset (use_introspection) are not affected.

Common 403s and what to switch to

`resultMessage` access right	Endpoint(s)	Minimum permission to fix
`[CREATE_CLIENT]`	`/client/create`, `/client/get/default`	`create_client` (or `modify_service`)
`[MODIFY_CLIENT]`	`/client/update`, `/client/delete`, `/client/secret/*`, `/client/authorization/delete`, …	`modify_client` (or `create_client` / `modify_service`)
`[MODIFY_SERVICE]`	`/service/update`, `/hsk/create`, `/hsk/delete`	`modify_service`
`[USE_INTROSPECTION]`	`/auth/introspection`, `/auth/introspection/standard`	`use_introspection` (or `use_service`)
`[VIEW_CLIENT]`	`/client/get`, `/client/get/list`, `/client/granted_scopes/get`	`view_client` (or any higher-level permission)
`[VIEW_SERVICE]`	`/service/get`, `/service/get/list`	`view_service` (or any higher-level permission)

Common Use Cases

Use case	Recommended preset	Key permission
Standard Authorization Server	Authorization Server	`use_service`
Resource Server (introspection only)	Resource Server	`use_introspection`
User logout / session management	Custom	`modify_client`
Dynamic client provisioning	Custom	`create_client`
Monitoring / inventory dashboards	Custom	`view_service`
Client audit / configuration review	Custom	`view_client`

Security Best Practices

Use least privilege. A Resource Server should hold only use_introspection; a read-only dashboard should hold only view_service. Reserve modify_service for trusted admin tooling.
Use a separate token per workload. Do not share a single SAT across the Authorization Server, the Resource Server, and your CI pipeline; each should have its own token with its own permission set and its own rotation cadence.
Set an expiration date on every SAT used by automation, and rotate them as part of your secret-rotation policy.
Never commit SATs to source control. Store them in a secrets manager (AWS Secrets Manager, GCP Secret Manager, HashiCorp Vault, 1Password, etc.) and inject them at runtime.
Rotate immediately on suspected compromise, on personnel change, or on any change to the workload that consumes the token.

Conclusion

Service Access Tokens give Authlete deployments a single, scoped credential for each runtime workload that calls Authlete APIs. The preset model covers the standard Authorization Server, Resource Server, and admin use cases out of the box, while custom permissions and the inheritance rules make it straightforward to mint a least-privilege token for any other integration.

For more information, please contact us via the contact form.
