Preface

This short guide will help you migrate your Authlete services from an older version to our latest 3.0 build.

Version Migration Guide

Upgrading to Authlete 3.0 cannot be done directly to the running Authlete 2.3 instance. Instead, a new Authlete 3.0 environment is created and all configuration, services and clients need to be migrated over to the new Authlete 3.0 environment.

During services and clients migration, optionally access tokens can also be migrated via the token-migration service. This is a new service introduced to handle token copying and updating from the Authlete 2.3 environment into the Authlete 3.0 environment which will allow existing tokens issued in the Authlete 2.3 environment to be valid and usable in the new Authlete 3.0 environment.

The general upgrade path is as follows:

1. Login to the new Authlete 3.0 console
2. Create and configure the amount of Organization(s) that are needed for the migration
3. Service and Client Migration (Refer to below section) - Using the Import/Migrate feature, import the appropriate service(s) and client(s) into this organization
4. Token Migration - Optional, if existing tokens need to be available in the new 3.0 environment
5. Update OAuth Server / Applications

Note : The token migration tool only has read access to the source DB and is therefore unable to alter data of any kind

Service & Client Migration

1. Log into the Authlete 3 Console, and go to Organization Settings > Basic Settings > Import/Migrate

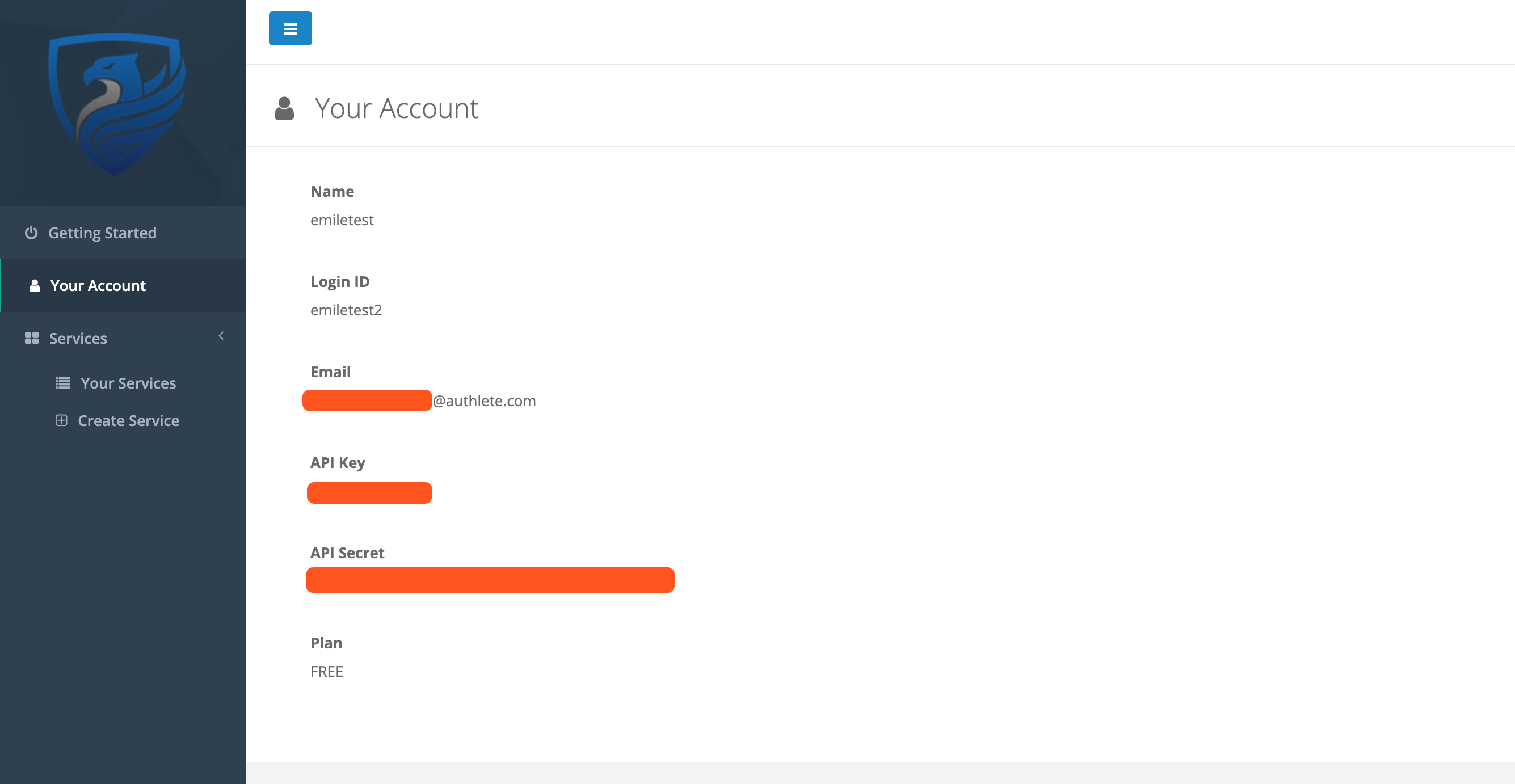

2. Log into the Authlete 2 SO Console, and copy/paste the Service Owner API Key and API Secret from your account (can be found in the Your Account page)

3. Enter the Authlete API URL for your cluster

• If you’re using one of our shared clusters, enter one of the corresponding URLs below :
  • US : https://api.authlete.com
  • Japan : https://tokyo.authlete.com
  • Brazil : https://latam.authlete.com
• If you are on a dedicated cloud or using an on premises setup, you will need to input the API URL used by your own environment

4. Click Continue

5. The API should return a list of services that are attached to that account
6. Tick the checkbox next to the services you would like to migrate
7. If you plan to use the token-migrator tool, tick the Synchronize Client Tokens and Migrate Client Secrets checkboxes. This will ensure clients belonging to the service are detected, and their tokens and/or secrets are migrated to the 3.0 environment. This property can also be updated individually per client after the import, under Client Settings > Basic Settings > Advanced > Migration Settings.
8. Click on the Select cluster dropdown to choose a cluster under which to migrate services

9. Click Continue
10. Click Import on the confirmation screen
11. The services (and attached clients) should now appear inside the Authlete 3 console navigation

Token Migration

Token migration is optional but will allow previously issued tokens from the Authlete 2.3 environment to be usable and valid in the new Authlete 3.0 environment.

The token-migration service will copy access tokens from the Authlete 2.3 environment into the Authlete 3.0 environment. When running, it will be polling the Authlete 2.3 environment for new tokens or token updates and propagate these into the Authlete 3.0 environment. Tokens will only be copied for clients who exist in both the Authlete 2.3 and Authlete 3.0 environment and for clients that have the Synchronize Client Tokens setting enabled.

It’s important to note that this task may take some time depending on the amount of data that is eligible for migration. As of current, it takes on average 60 minutes to migrate 1,000,000 tokens. Note that for clients with large amounts of tokens, there may be a delay as to when these tokens will become available in the Authlete 3.0 environment. Delay may also occur in Authlete shared environments as the platform is available for other users who may be migrating tokens at the same time. Token migration progress can be viewed in the organization’s audit logs indicating the amount of created and updated tokens within a rolling 4 hour time window.

Once the migration is complete, you can verify that your tokens have been properly migrated and are valid by using the token introspection endpoint on 3.0 (POST /api/{serviceId}/auth/introspection) and if direct database access is available in self-managed environments, by comparing token counts per client/service in both the source and destintation databases.

Client Token Migration Conditions

There are specific requirements that need to be met by clients in both the source and destination system in order for the token migrator to correctly identify that they are matching clients and should have their tokens migrated. The requirements are strict to ensure that a client’s secrets are migrated to the correct client in the destination system. The following conditions must be met for both clients (the one that exists in the source system and the one that exists in the destination system) :

• The clientId value must match - clientIdAlias is ignored
• The serviceId (api_key) that both clients exist in must be the same in both systems
• The destination client, must have the Synchronize Client Tokens setting enabled
  • This can be enabled during the import dialog or in the client settings under Client Settings > Basic Settings > Advanced > Migration Settings
• The clientSecret value must match
  • This can be automatically copied over via the import dialog
  • Or if needed you may call the endpoint /api/<service-id>/client/secret/update/<client-id> to update the client secret of a specific client

Update OAuth Server / Applications

Any applications that are communicating with the Authlete 2.3 environment need to be updated to point to the new Authlete 3.0 environment.

The changes required vary depending on your setup but this could include:

• Changing the API version if you are using our SDKs
• Updating endpoints and authentication credentials due to the change of authentication mechanism and endpoint structure in Authlete 3.0 compared to Authlete 2.3
• Configuration changes
• New version updates for your own internal authentication server(s)

We can provide guidance on hard cutover approaches (which require downtime) along with a slow cutover approach that can be used to achieve zero downtime during the migration period.

Immediate cutover upgrade

This approach still requires changes to your authentication applications. But a hard cutover will need to be performed to switch from the Authlete 2.3 environment to the Authlete 3.0 environment.

For this approach, there are two options which mainly depends on the amount of tokens that need to be migrated along with how much capacity for downtime of your own service that can be tolerated:

Bulk Token Migration (Downtime expected between steps a → d)

1. Applications connected to the Authlete 2.3 environment are stopped (at scheduled time with the Authlete team)
2. Notify Authlete support team and the token-migration service will be started
3. Authlete team provides update once token-migration is complete
4. Update applications to connect to new Authlete 3.0 environment
5. Rollback: Downgrade/roll back authentication server changes to connect back to Authlete 2.3 environment

Just In Time (JIT) migration synchronization (Downtime expected only in step c)

1. Set a designated time with the Authlete team to enable the token-migration service
2. Receive response from Authlete team that all tokens have been created and any token changes will be monitored and copied over by the token-migration service
3. Update applications to connect to new Authlete 3.0 environment
4. Rollback: Downgrade/roll back authentication server changes to connect back to Authlete 2.3 environment

Zero downtime (parallel cutover) upgrade

This approach requires changes to your authentication applications prior to the migration/upgrade to Authlete 3.0, but the Authlete 3.0 environment must be available. Our sample implementation of an oauth server is available in the following repository: https://github.com/authlete/java-oauth-server-migration.

The approach we have implemented involves changing the authorization server to connect to both the Authlete 3.0 (primary) server and the Authlete 2.3 (secondary) server. Incoming calls are by default delegated to the primary first and depending on its response (or whether it is a 3.0 only endpoint feature) will determine whether the response from the primary is returned or whether the request is delegated to the secondary API instead.

These application changes should be deployed before you start the migration of services and clients into the Authlete 3.0 environment. While the token-migration service is running in the background and tokens are becoming available in the Authlete 3.0 environment, the primary API will be able to handle more and more of the incoming requests. Once all tokens are copied/updated in the Authlete 3.0 environment then all of the incoming calls to your application would be delegated and handled by the Authlete 3.0 environment. At this time, the migration is complete, no other token changes should be occurring in the Authlete 2.3 environment and all calls will be using the latest Authlete 3.0 environment.

Future Work and Compatibility

As of current, token migration is only possible between Authlete 2.3, and the latest Authlete 3.0 patch version, for the same deployment model and region. We are however planning to support migrating tokens from a shared cluster to a dedicated cluster in the near future, as well as providing detailed documentation on how to run the migration on self-managed environments.

If you wish to migrate to Authlete 3.0, but aren’t currently using Authlete 2.3, please contact our support team so we can assist you in the process to upgrade your environment.

Troubleshooting & FAQ

Q: How can I check the migration progress?

A: You can check the migration progress in real time by refreshing the dedicated log entry in the organization audit logs.

Q: How can I make sure that client’s secrets remain the same when they are imported into the new 3.0 environment?

A: You can do so by ticking the Migrate Client Secrets checkbox when migrating your service configuration. Otherwise, the client secret will be randomly generated.

Q: How can I test the client token migration selectively for a single client?

A: Using the new Synchronize Client Tokens flag in the UI, you can selectively mark the client as “in scope” for token migration and only their tokens will be migrated. This will allow you to test the end to end migration process at a smaller scale.

Q: How are tokens change or new tokens handled by the migration?

A: Token changes and new token creation events are polled by the token-migrator service for the configured clients, and upon detecting these events the respective tokens are updated/created in the destination database.
